Today, I want to talk about something that's been a pain point in the automotive industry for...
The Challenge of End-of-Line Calibration
For major automotive OEMs, End-of-Line (EOL) calibration is a critical yet costly step in the manufacturing process. Every vehicle rolling off the assembly line must undergo precise calibration to ensure all sensors function correctly, especially for safety-critical systems like ADAS (Advanced Driver Assistance Systems). This process is necessary to guarantee the accuracy and reliability of these systems, and to meet regulatory requirements.
Why EOL Calibration is a Necessary Step in Automotive Manufacturing
EOL calibration is a necessary step in the automotive manufacturing process because it ensures that all sensors and systems in a vehicle are functioning correctly. This process is critical to guarantee the accuracy and reliability of ADAS and other safety-critical features. By calibrating these systems at the end of the production line, manufacturers can verify that all components are working together seamlessly, reducing the risk of errors or malfunctions on the road.
Furthermore, EOL calibration is also a regulatory requirement in many countries, with laws and standards such as the United Nations Economic Commission for Europe (UNECE) Regulation 79 and the European Union's General Safety Regulation (GSR) mandating the calibration of certain vehicle systems before they can be sold. Failure to comply with these regulations can result in significant fines and reputational damage, making EOL calibration a crucial step in the manufacturing process. Additionally, EOL calibration also helps manufacturers to meet industry standards such as ISO 26262, which provides guidelines for the functional safety of various systems in the vehicle.
The Challenges of EOL Calibration
Despite its importance, EOL calibration is a costly and time-consuming process. It involves:
- - Skilled technicians performing calibration, leading to high labor costs and slowing down production.
- - Dedicated factory floor space for calibration, rather than production.
- - Specialized equipment, adding to capital expenditures.
- - Regular recalibration of the calibration equipment

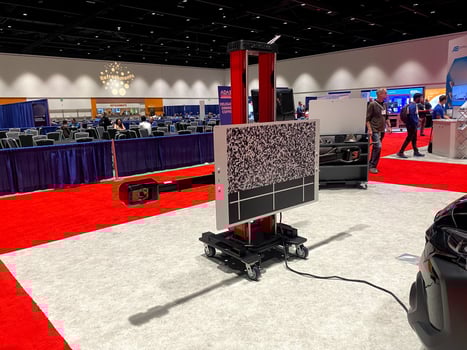

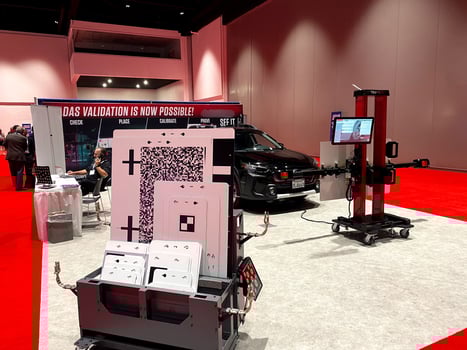

The images above depict the End-of-Line calibration equipment.
These challenges highlight the need for a more efficient and cost-effective solution for EOL calibration. By streamlining this process, manufacturers can reduce costs, improve productivity, and ensure compliance with regulatory requirements.
The Zero-Click Calibration Solution
Zero-Click calibration redefines this process by eliminating traditional calibration steps at the End-of-Line. Here’s how:
- - No trained labor is required, as calibration is automated, drastically reducing labor costs.
- - No expensive hardware is needed, leading to significant savings.
- - No dedicated space is required, as calibration is integrated into the existing production workflow, freeing up valuable factory space.
Improved ROI and Cost Savings
By adopting Zero-Click calibration, manufacturers can realize substantial cost reductions. Our following case studies demonstrate:
- - Labor costs eliminated through automation with Zero-Click.
- - Calibration time is significantly reduced, as Zero-Click automatically calibrates when the car is turned on.
- - Hardware costs are reduced by removing the need for specialized equipment.
- - Improved space utilization by freeing up areas previously dedicated to calibration.
Understanding Return on Investment (ROI)
Return on Investment (ROI) is a financial metric that calculates the return or profit that an investment generates in relation to its cost. In the context of End-of-Line calibration, ROI measures the cost savings and efficiency gains that manufacturers can achieve by implementing a new calibration solution, such as Zero-Click. By calculating the ROI, Automotive OEMs can determine whether the investment in a new calibration solution is worth the cost and evaluate its potential impact on their bottom line.
To illustrate the potential ROI of Zero-Click calibration, let's consider two scenarios:
Scenario 1: Large-Scale Production
|
Calibration Type |
License Fee($) |
Total Cars Manufactured |
Total Production Line Count |
Total Yearly Calibration Cost ($) |
Total Cost Savings ($) |
Cost Savings (%) |
ROI (%) |
|
OEM calibration |
$6,050,000 per production line |
8,300,000 |
140 |
$847,000,000 |
$0 |
- |
- |
|
Zero-Click |
$1 |
8,300,000 |
140 |
$8,300,000 |
$838,700,000 |
99.00% |
10105% |
|
Zero-Click |
$10 |
8,300,000 |
140 |
$83,000,000 |
$764,000,000 |
90.20% |
920% |
|
Zero-Click |
$50 |
8,300,000 |
140 |
$415,000,000 |
$432,000,000 |
51.00% |
104% |
See the formulas used for my calculations below:
You can find how I calculated the ROI values for Zero-Click below:
| Zero-Click $1 | Zero-Click $10 | Zero-Click $50 | |
| Cost of Zero-Click | $8,300,000 | $83,000,000 | $415,000,000 |
| Total Savings | $838,700,000 | $764,000,000 | $432,000,000 |
| ROI |
(8,300,000/838,700,000)×100 ≈10,105% |
(83,000,000/764,000,000)×100 ≈920% |
ROI: (415,000,000/432,000,000)×100 ≈104% |
Please note that we are using a licensing fee of $1, $10, and $50 for Zero-Click here for demonstration purposes only.
The ROI values calculated for Zero-Click demonstrate significant financial benefits for automotive manufacturers. An ROI of 10,105% at the $1 price point indicates an exceptionally high return, meaning that for every dollar invested, the return is over 100 times the investment. At the $10 price point, an ROI of 920% is outstanding, showing that the investment yields value nearly ten times its cost. These high ROI values reflect substantial cost savings and efficiency improvements, making Zero-Click a highly attractive investment for manufacturers.
The ability to achieve such returns underscores the effectiveness of Zero-Click in reducing calibration costs and enhancing overall production efficiency and car safety, providing a compelling case for its adoption for every OEM in the automotive industry.
Scenario 2:
By using Zero-Click, automotive OEM customers can expect to achieve significant cost savings and efficiency improvements. Here are some examples of the ROI that customers can expect:
- - Dramatic reduction in calibration costs
- - Payback period of as little as 3-6 months
- - Increased productivity and efficiency through automated calibration
- - Improved accuracy and reliability of calibration results
These ROI calculations demonstrate the potential cost savings and efficiency improvements that can be achieved by adopting Zero-Click calibration.
Safety Always Comes First
One of the most compelling aspects of Zero-Click calibration is its impact on safety. With traditional methods, calibration accuracy can vary based on technician skill and environmental factors. Zero-Click ensures that sensors are always calibrated to the highest standards, directly within the production process, maintaining and often improving the safety and reliability of vehicle sensor systems. You can read more about safety on our previous blog post here.
Conclusion
The future of automotive manufacturing is one where efficiency and safety go hand in hand. Zero-Click calibration represents a breakthrough in this regard, offering a solution that not only cuts costs but also enhances the reliability and safety of vehicles. For OEMs looking to improve their bottom line while maintaining the highest standards, Zero-Click is the way forward. The future of Automotive is Software Driven.
